3D model of the Dendro Lift three-column lifting table

Dendro Lift AB, Sweden · 09/2026 · commissioned

Synchronized control of a three-column lifting table

Three screw columns, one rigid platform, 36 t capacity: PLC and safety software on Siemens ET 200SP F, axis synchronization and remote commissioning.

ET 200SP F-CPUSIMATIC SafetySINAMICS G120CPROFIsafeWinCC Basic
Project details

Dendro Lift AB, Sweden · 09/2026 · commissioned

Synchronized control of a three-column lifting table

ET 200SP F-CPUSIMATIC SafetySINAMICS G120CPROFIsafeWinCC Basic

Results

≈ 0.4 mm
axis deviation while travelling
2 days
remote commissioning
0
reference runs, thanks to absolute encoders
0
changes to the safety program during commissioning

Challenge

Swedish lifting-equipment manufacturer Dendro Lift needed control software for a platform on three screw columns: 36 t capacity (3 × 12 t), 6.2 m stroke, 3 × 7.5 kW drives. The rigid plate must not twist while moving or when one drive fails. The machine was commissioned in Sweden with no programmer on site and now goes to its end customer in Asia.

Solution

An ET 200SP F-CPU drives three SINAMICS G120C converters from a virtual master with per-axis correction. Absolute multiturn PROFINET encoders remove reference runs. A safety program designed for PL d / SIL 2 covers emergency stop, doors with a two-step reset, STO via PROFIsafe and cross-stop of all axes. Bilingual HMI with 96 alarms.

Result

The control cabinet was tested with its safety devices before shipment and the machine was commissioned remotely in two days. Axis deviation while travelling stays around 0.4 mm without further controller tuning.

Project size

26
standard I/O points (19 DI, 6 DQ, 1 AI)
5
fail-safe I/O: 2 dual-channel inputs (E‑stop, doors), 3 brake outputs
8
PROFINET devices (CPU, HMI, 3 drives, 3 encoders)
≈ 4,300
lines of SCL in 21 source files
6
HMI screens, 88 tags, 96 alarms in 2 languages
≈ 6 weeks
from specification to handover

Customer reference

“Dendro has cooperated with Michal for many years. Michal/MiliSoft has always been very helpful, even with very short notice, in all our FAT and SAT.”

Nils Jacobsson, CTO, Dendro Lift

Technical highlights

  • Virtual-master synchronization

    A software reference running every 10 ms leads all three axes as equals, each with its own PI correction. If one axis lags, the reference slows down instead of tripping, so the platform stays level.

  • Absolute encoders, no reference runs

    Position is unambiguous over the full stroke. The zero point is set once, remotely and without moving the machine – the PLC writes the preset straight into the encoder.

  • Safety built on the given hardware

    The drive has no safe brake control, so the brake is released only when both the fail-safe output and the drive agree. STO runs over PROFIsafe, and losing safe communication with any drive stops all three axes.

  • Built for remote commissioning

    Diagnostics report the cause and location of a fault: the first dropout in the drive chain, the side of the analog loop, or a device that failed to register. The HMI has 96 alarms in two languages and a dedicated synchronization screen.

My scope of work

PLC softwareSafety programHMIDrive parameterizationOn-site and remote commissioningDocumentation

As a subcontractor to the switchgear builder that supplied the control cabinet to Dendro Lift. Hardware and electrical design came from the switchgear builder, mechanics and assembly from Dendro Lift.

Images

The photos were taken during commissioning at the manufacturer in Sweden before shipment; this is not the final installation at the end customer.

Test assembly during commissioning before shipment (Sweden, 09/2026) – not the final installation
Test assembly during commissioning before shipment (Sweden, 09/2026) – not the final installation
Commissioning before shipment: the table mounted on the columns
Commissioning before shipment: the table mounted on the columns
Commissioning before shipment: columns with lead screws and the motors at the top
Commissioning before shipment: columns with lead screws and the motors at the top
Control architecture: F-CPU, three drives and three absolute encoders on PROFINET
Control architecture: F-CPU, three drives and three absolute encoders on PROFINET
Commissioning before shipment: absolute multiturn PROFINET encoder on the motor
Commissioning before shipment: absolute multiturn PROFINET encoder on the motor
HMI home screen: table height, column spread and safety status
HMI home screen: table height, column spread and safety status
HMI – three-axis synchronization against the virtual master
HMI – three-axis synchronization against the virtual master
HMI – service mode and single-axis jog
HMI – service mode and single-axis jog

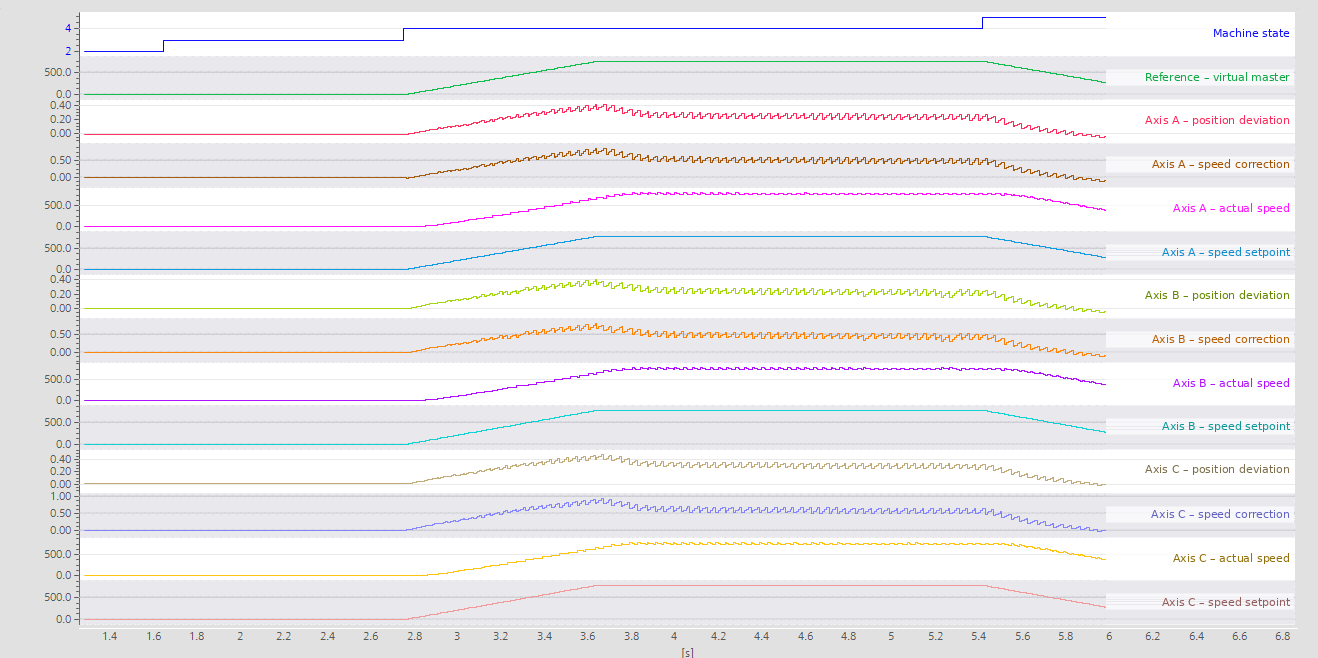

TIA Portal trace of a three-axis run: position deviation of each axis below 0.5 mm
TIA Portal trace of a three-axis run: position deviation of each axis below 0.5 mm
